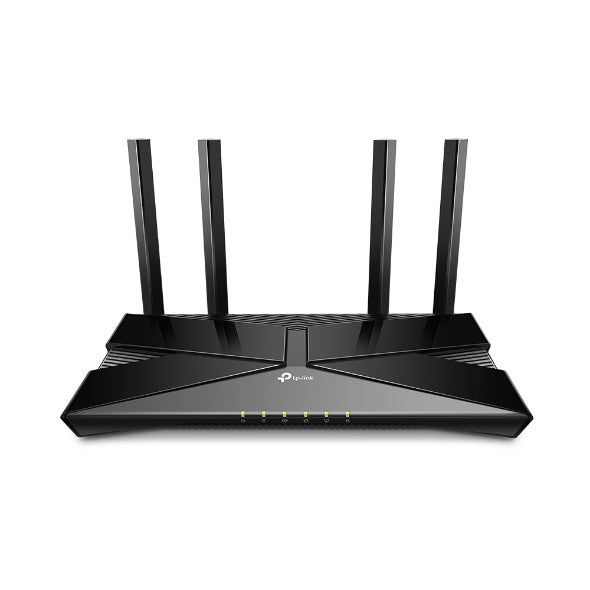

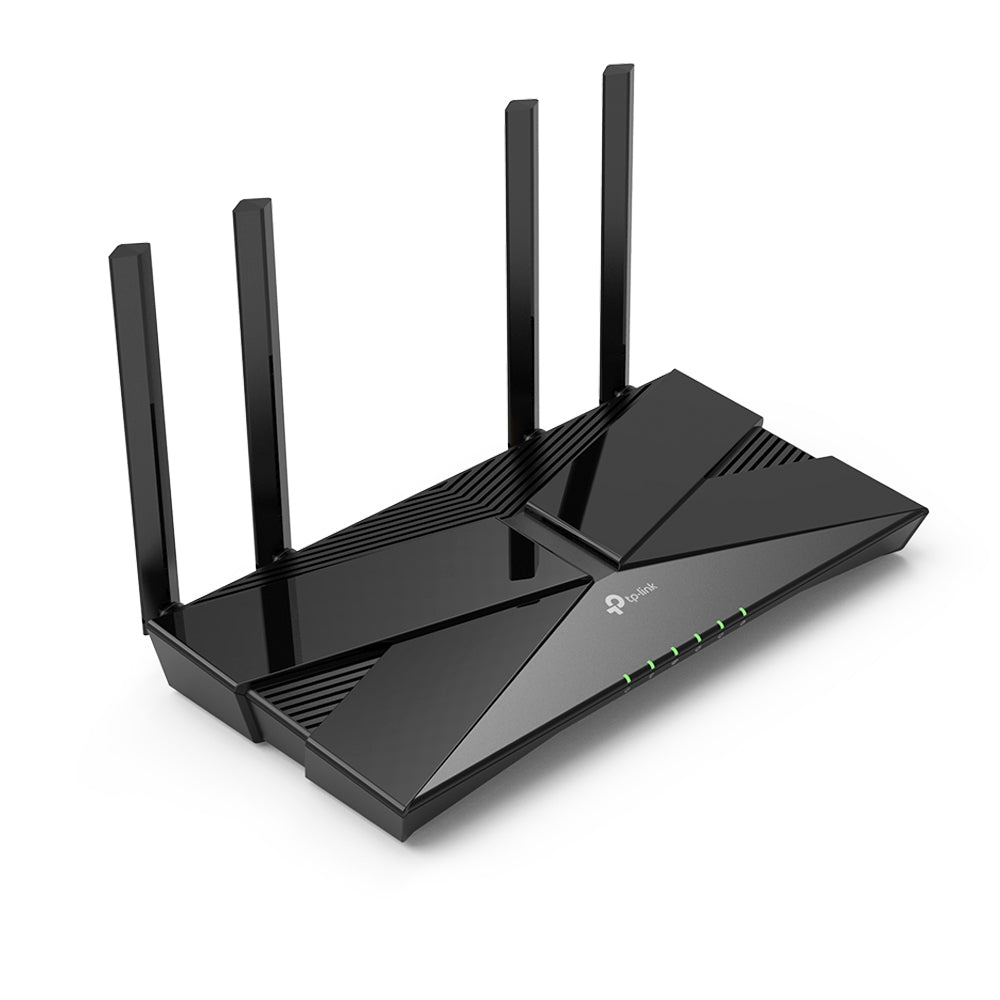

Tp-Link AX1800 Dual Band Router

Tp-Link AX1800 Dual Band Router

TP-Link AX1800 is the dedicated Archer, a Dual Band Wi-Fi 6 Router opens up the new era of Wi-Fi at 52% faster speeds with 25% improved efficiency for seamless entertainment.

Redefining connectivity to your whole home Wi-Fi, the 4 high-performance external antennas work in sync with Beamforming tech to detect and concentrate signal strength towards devices located in every nook and corner of your household.

Integrate it with OneMesh extenders from TP-Link to experience seamless, smooth roaming connectivity between signals.

Features:

• Upgrade every smart gadget to faster speeds, higher capacity and minimal lag
• 1.8 Gbps super-fast Wi-Fi downloads movies in a matter of seconds
• Reaches out to the remotest wi-fi dead zones
• WPA3 cyber security for enhanced protection
• Universal ISP support extends to multiple devices
• Easy to set up and easier to use with Tether App

Specifications:

WIRELESS

Standards: Wi-Fi 6, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz

Wi-Fi Speeds: AX1800, 5 GHz: 1201 Mbps (802.11ax, HE160), 2.4 GHz: 574 Mbps (802.11ax)

Wi-Fi Range:

2-3 Bedroom Houses
4 x Fixed High-Performance Antennas
Multiple Antennas form a signal-boosting array to cover more directions and larger areas

Beamforming
Concentrates wireless signal strength towards clients to expand Wi-Fi range

Wi-Fi Capacity:

High
Dual-Band
Allocate devices to different bands for optimal performance

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

4 Streams
Connect your devices to more bandwidth

Working Modes: Router Mode, Access Point Mode

HARDWARE

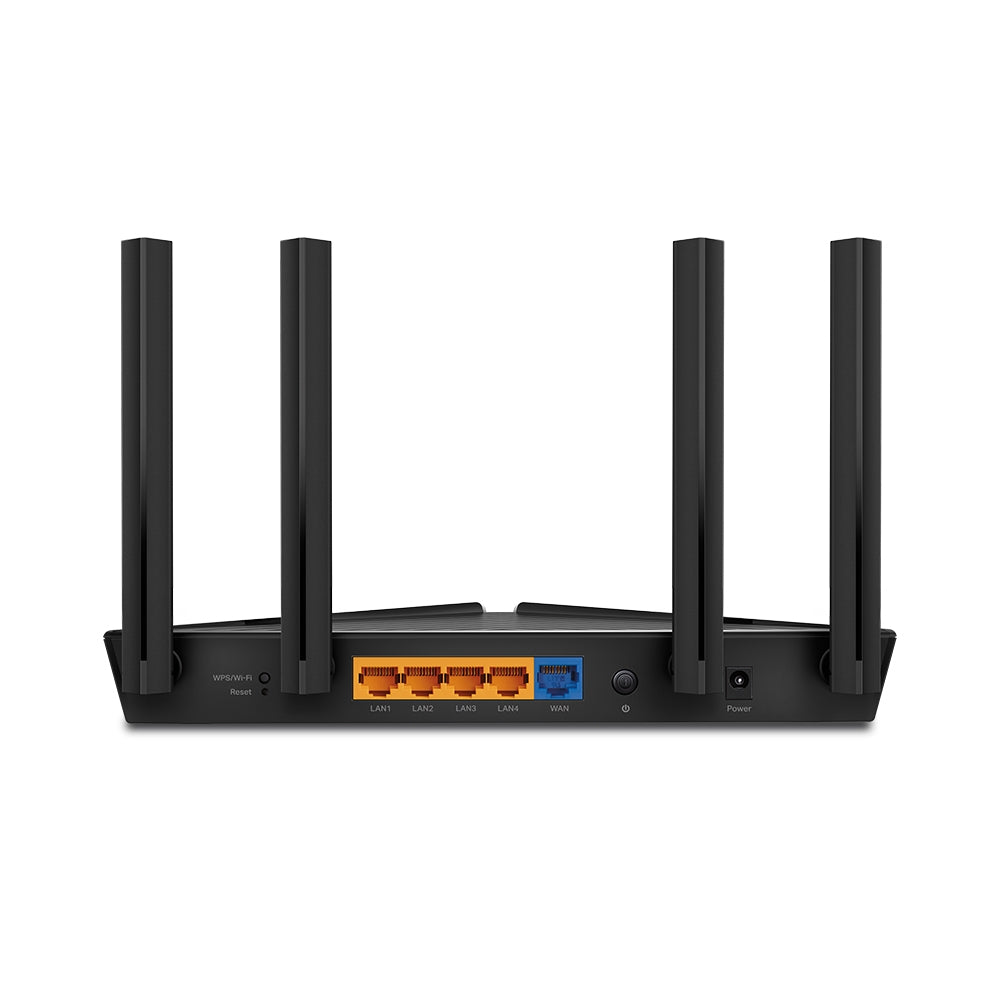

Ethernet Ports: 1 x Gigabit WAN Port, 4 x Gigabit LAN Ports

Buttons: WPS Button/Wi-Fi button, Power On/Off Button, Reset Button

Power: 12 V ⎓ 1 A

SECURITY

Wi-Fi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway

Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network

VPN Server: OpenVPN, PPTP

SOFTWARE

Protocols: IPv4, IPv6

OneMesh™: OneMesh™ Supported, Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Parental Controls: URL Filtering, Time Controls

WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

Quality of Service: QoS by Device

Cloud Service: Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID, DDNS

NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Servers

IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN

DHCP: Address Reservation, DHCP Client List, Server

DDNS: TP-Link, NO-IP, DynDNS

Management: Tether App, Webpage

OTHERS

Dimensions (W×D×H): 10.2 × 5.3 × 1.5 in

System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)

Certifications: FCC, CE, RoHS

Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA

Wi-Fi Transmission Power:

CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}

FCC:
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }

Wi-Fi Reception Sensitivity:

EU Version

2.4GHz:

11g 6Mbps:-96dbm
11g 54Mbps:-75dbm
11n HT20_MCS0:-95dbm
11n HT20_MCS7:-75dbm
11n HT40_MCS0:-92dbm
11n HT40_MCS7: -72dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm

5GHz:

11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT80_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm

Wi-Fi Reception Sensitivity:

US Version

2.4GHz:

11g 6Mbps:-96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm

5GHz:

11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT40_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm

What's in the Box:

1 x Wi-Fi Router Archer AX23

1 x Power Adapter

1 x RJ45 Ethernet Cable

1 x Quick Installation Guide
