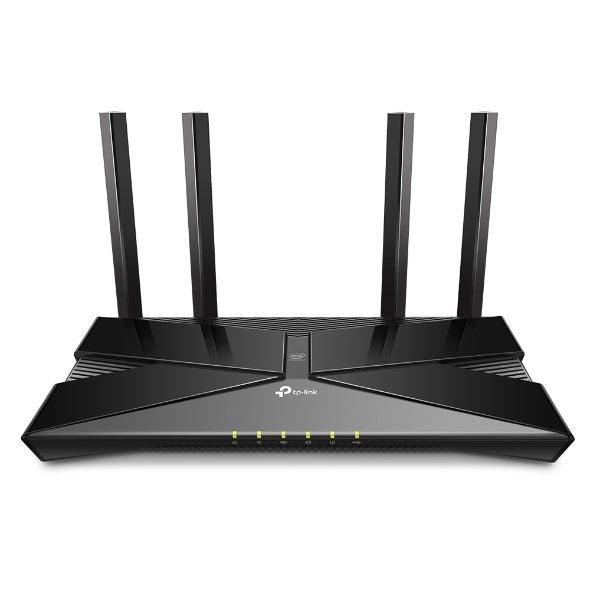

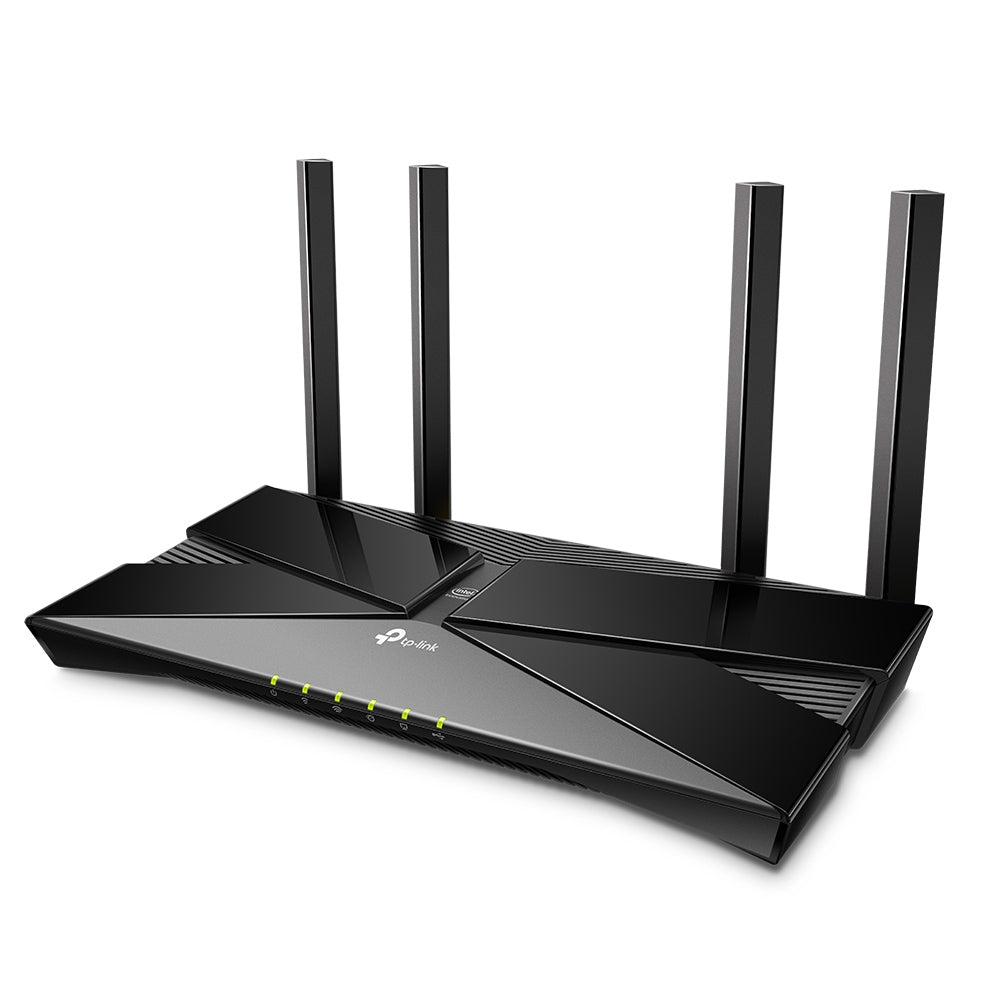

Tp-Link Archer AX3000 Dual Band Gigabit Wi-Fi Router

Tp-Link Archer AX3000 Dual Band Gigabit Wi-Fi Router

Archer AX3000 is your next-gen dual band Gigabit Wi-Fi 6 router from the house of TP-Link, redefining the future of your home Wi-Fi. Easy to set up and easier to use, AX3000 can help you reach incredible speeds of 3 Gbps boosting your browsing, streaming, downloading and gaming experience to new levels.

4 antennas work in sync with Beamforming technology to focus signal strength to every device hooked on to the network. The revolutiona ryOFDMA tech is in place to eliminate the data traffic congestion and disperse superior speeds to multiple devices connecting simultaneously.

Features:

• Backward compatible with all previous 802.11 standards, wi-fi devices
• Ultra-low latency for all devices and applications
• Focused signal strength with beamforming technology
• OFDMA to manage and minimize congestion
• Tether App for easy set up, use and control
• Perfect for vivid 8K/4K streaming and intense online gaming
• Target Wake Time (TWT) interacts with devices, negotiates when and how to transfer data
• Increased battery life minimizes power consumption

Specifications:

WIRELESS

Standards: Wi-Fi 6, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz

Wi-Fi Speeds: AX3000, 5 GHz: 2402 Mbps (802.11ax, HE160), 2.4 GHz: 574 Mbps (802.11ax)

Wi-Fi Range:

3 Bedroom Houses
Beamforming
Concentrates wireless signal strength towards clients to expand Wi-Fi range

High-Power FEM
Improves transmission power to strengthen signal coverage

Wi-Fi Capacity:

High
Dual-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

4 Streams
Connect your devices to more bandwidth

Working Modes: Router Mode, Access Point Mode

HARDWARE

Processor: Powerful CPU

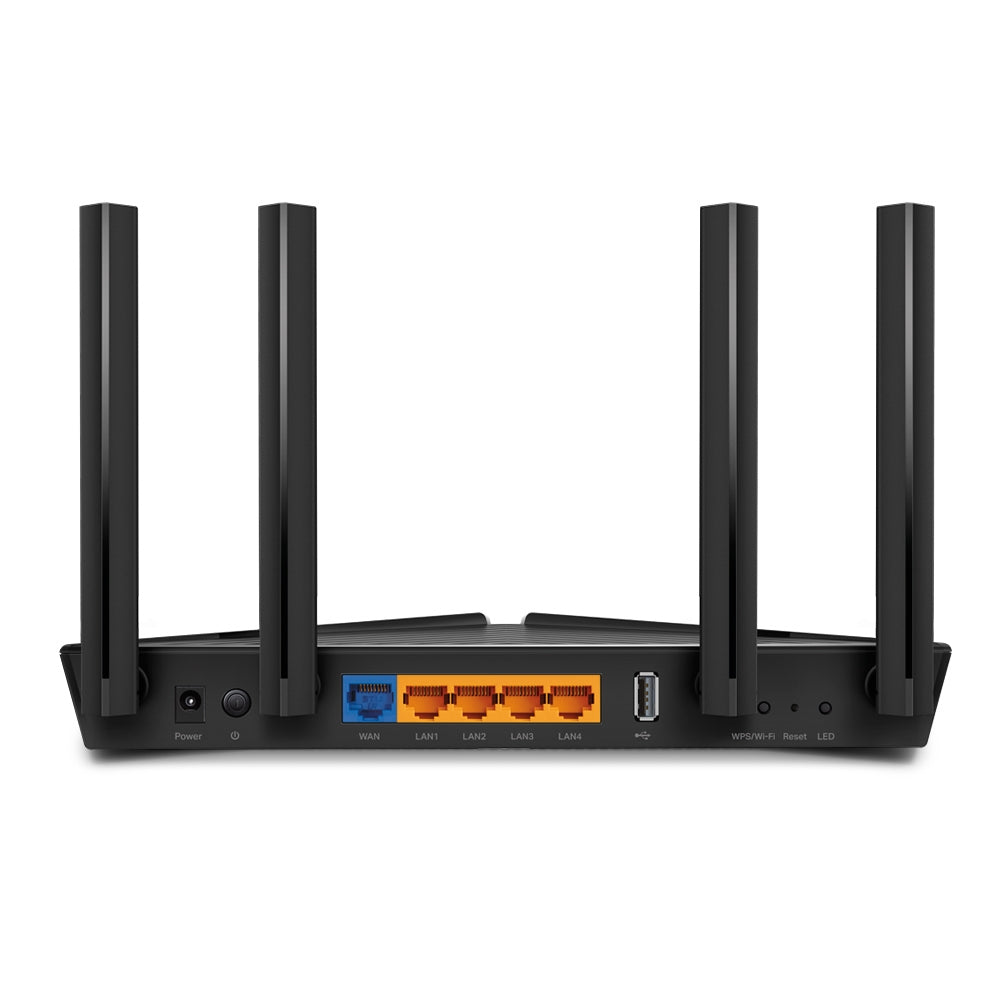

Ethernet Ports: 1 x Gigabit WAN Port, 4 x Gigabit LAN Ports

Buttons: WPS Button, Reset Button

Power: 12 V ⎓ 1.5 A

SECURITY

Wi-Fi Encryption: WPA, WPA2, WPA/WPA2-Enterprise (802.1x), WPA3 (V2.0)

Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway

Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network

VPN Server: OpenVPN, PPTP VPN Server, L2TP VPN Server

VPN Client: OpenVPN, PPTP VPN Server, L2TP VPN Server

SOFTWARE

Protocols: IPv4, IPv6

OneMesh™: OneMesh™ Supported, Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

EasyMesh: Mesh networking creates smooth, fast, stable roaming. ArcherAX3000 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.

Parental Controls: URL Filtering, Time Controls

WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

Quality of Service: QoS by Device

Cloud Service: Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID, DDNS

NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Servers

IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN

DHCP: Address Reservation, DHCP Client List, Server

DDNS: TP-Link, NO-IP, DynDNS

Management: Tether App, Webpage

OTHERS

Dimensions (W×D×H): 6.5 × 6.2 × 1.8 in

System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)

Certifications: FCC, CE, RoHS

Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA

Wi-Fi Transmission Power:

CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}

FCC:
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }

Wi-Fi Reception Sensitivity:

2.4GHz:

11g 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm
11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm

5GHz:

11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm
11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS11:-55dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm
11ax HE160_MCS0:-85dBm, 11ax HE160_MCS11:-55dBm

What's in the Box:

1 x Wi-Fi Router Archer AX3000

1 x Power Adapter

1 x RJ45 Ethernet Cable

1 x Quick Installation Guide
