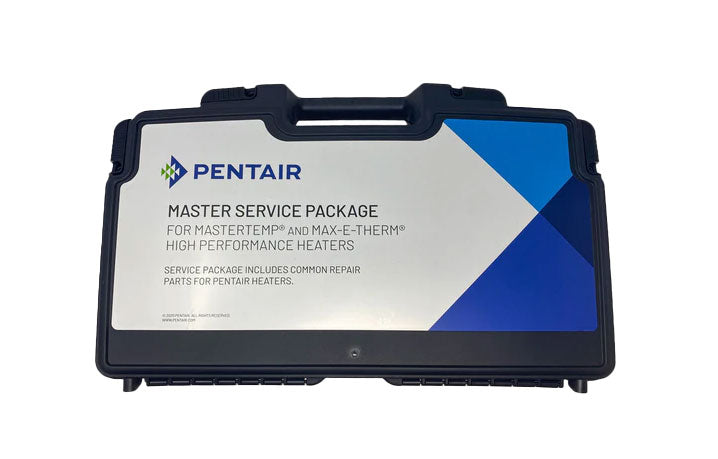

The Pentair 461100 Pro Service Heater Master Package is ideal for pool professionals and homeowners seeking a thorough maintenance solution for their Pentair heaters!

A comprehensive kit designed for maintaining and servicing Pentair MasterTemp and Max-E-Therm pool heaters, the 461100 Pro Service Heater Master Package addresses both water and electrical system components, ensuring efficient and reliable heater performance.

The kit includes the following components:

Fireman's Switch Fuse (1.25 amps): Protects the heater's electrical system by preventing overcurrent situations.

Duro Buna O-rings: Ensures watertight seals within the heater's plumbing connections.

Membrane Pad (NA, LP Series): User interface component for controlling heater settings.

Ignition Control Module: Manages the ignition process to ensure safe and efficient heater startup.

Thermistors: Monitors water temperature to maintain desired heating levels.

Water Pressure Switch: Detects adequate water flow to prevent heater operation under low-flow conditions.

Airflow Switch: Ensures proper ventilation by monitoring airflow within the heater.

High-Limit Switches: Protects against overheating by shutting down the heater if temperatures exceed safe limits.

Transformer (115/230V): Supplies necessary voltage to various heater components.

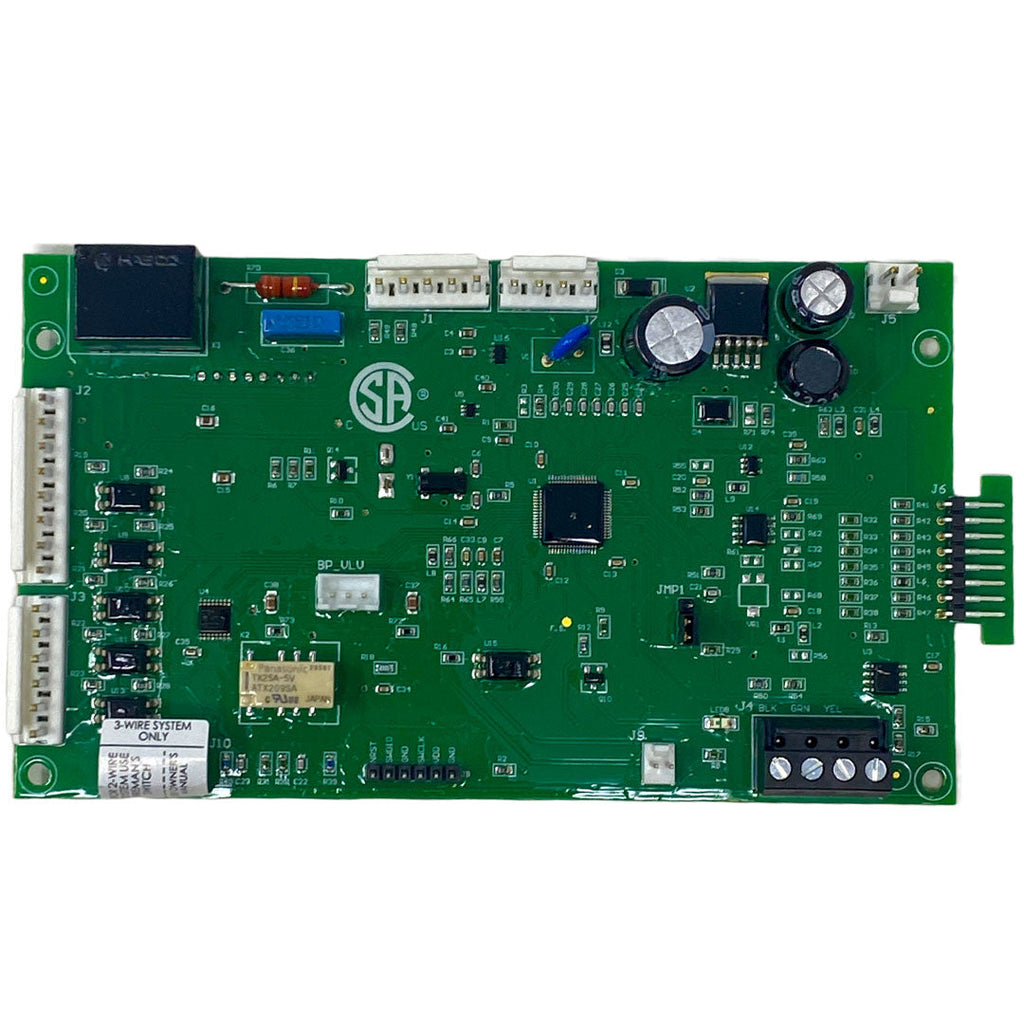

Control Board Kit (NA, LP Series): Central processing unit that manages heater operations and diagnostics.

Stack Flue Sensor: Monitors exhaust temperatures to ensure safe venting conditions.

Automatic Gas Shutoff Switch (AGS): Provides safety by shutting off the gas supply in case of a malfunction.

Manifold Bypass Valve Kit: Regulates water flow within the heater to maintain optimal heating efficiency.

Thermal Regulator Kit: Controls internal water temperature to prevent overheating.
Igniter/Igniter Gasket Kit: Ignites the fuel mixture to start the heating process.

Highlights:

•    Master Service Package for MasterTemp and MAX-E-THERM high-performance heaters
•    Service package includes common repair parts for Pentair heaters.
•    Has everything you need to repair your Pentair Mastertemp Pool Heater and Max-E-Therm Pool Heater
•    The package contains many parts: Fireman's Switch Fuse, O-ring #2-226, membrane pad, ignition control module, thermistor, water pressure switch, air flow switch, high limit switch, transformer, control board, stack flue sensor, automatic gas shut-off switch, manifold by-pass valve, thermal regulator kit, and the igniter gasket.

SPECIFICATIONS:

Product Category: Parts

Poolweb Item: 461100

Manufacturer: Pentair

Weight: 7.0 lb

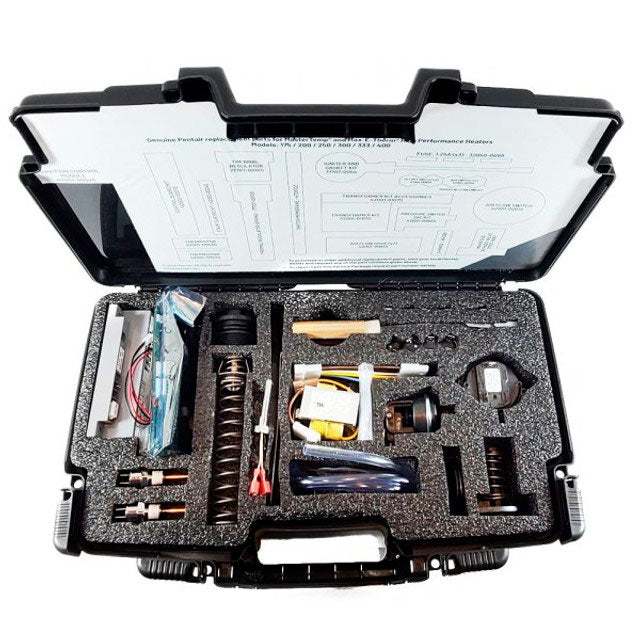

WHAT’S IN THE BOX:

3 x Fireman's Switch Fuse (1.25 amps)

2 x Duro Buna O-ring

1 x Membrane Pad (NA, LP series)

1 x Ignition Control Module

2 x Thermistor

1 x Water Pressure Switch

1 x Airflow Switch

2 x High-limit Switch

1 x Transformer 115/230V

1 x Control Board Kit (NA, LP series)

1 x Stack flue Sensor

2 x Automatic Gas Shutoff Switch (AGS)

1 x Manifold Bypass Valve Kit

1 x Thermal regulator Kit (includes Spring, O-ring, Cap, and Spring Clip)

1 x Igniter/ Igniter Gasket Kit
