DJI AIR 3 ADVANCED ALL-AROUND DRONE WITH DUAL CAMERAS

DJI AIR 3 ADVANCED ALL-AROUND DRONE WITH DUAL CAMERAS

The DJI Air 3 Advanced All-Around Drone with Dual Cameras is the ultimate flying companion for all photography and videography enthusiasts. This cutting-edge drone features not one, but two high-quality cameras that capture stunning aerial shots from every angle.

The Air 3 introduces the first dual-primary camera system in the Air series. It includes a 1/1.3-inch CMOS wide-angle camera and a 1/1.3-inch CMOS 3x medium tele camera, both housed in a sleek and compact body. Despite having the same sensor size, the two cameras feature different focal lengths, resulting in consistent image quality and offering a wider range of imaging possibilities.

Dual Camera: Both cameras can produce 48MP images with stunning, lifelike details that can be easily cropped in post-production for those who require it. The dual 1/1.3-inch CMOS sensors on the Air 3 allow for dual native ISO enabling cropping-free direct 4K/60fps HDR video output. Both cameras also support 10-bit D-Log M and 10-bit HLG color modes. For greater editing freedom, 10-bit D-Log M mode helps preserve more highlight and shadow details. With a larger dynamic range, the 10-bit HLG mode can produce good imaging results without the need for color grading.

Vision Assist: Air 3's Vision Assist provides real-time views from the front, rear, left, and right through an innovative omnidirectional vision-detecting system. This allows for more creative camera movements and provides pilots with a better understanding of their surroundings, unlocking the full potential of aerial photography and enabling pilots to fly with more confidence.

Extended Flight and Charging: Air 3 offers up to 46 minutes of flight time which is 48% longer than previous-generation aircraft. This extended duration allows ample time to explore, adjust compositions, and capture desired images in a single flight.

The advanced power transfer feature is facilitated by the new battery charging hub. Even with limited charging options, you can fully charge a battery by pressing and holding the function button to transfer the remaining power from multiple batteries to the one with the highest remaining power.

Omnidirectional Obstacle Sensing: Air 3's omnidirectional sensor system provides all-around environmental awareness, enabling it to identify obstructions from every angle. For a safer overall flying experience, Air 3 may use APAS 5.0 to execute smoother avoidance motions when objects are identified. Now, even total novices can fly with assurance and carry out original ideas in a safer manner.

O4 HD Transmission: Air 3 is equipped with significantly improved transmission performance thanks to the next-generation O4 HD video transmission system. It offers a maximum range of 20 kilometers with enhanced stability, together with a maximum quality live stream of 1080p/60fps to guarantee incredibly smooth operation and viewing.

Advanced RTH:  To return home promptly and safely during Smart RTH, Air 3 will automatically calculate an ideal flight path for Advanced RTH while retaining omnidirectional obstacle sensing.

ActiveTrack 360°: Utilize the ActiveTrack 360° feature of the Air 3 to enhance your creative photos. The omnidirectional vision sensor technology and 3x medium telecamera work together to provide you with cinematic footage that maintains focus on your topic. You still have easy-to-use control over the flight path when you fly in Manual mode. Air 3 will perform orbiting, approaching, and distancing operations with your subject centered when you draw your flight route on the Manual wheel.

Focus Track: FocusTrack effortlessly maintains you or your subject in the middle of the picture. When spotlighting subjects, the 3x medium telecamera allows for a special kind of spatial compression. When paired with omnidirectional obstacle sensing, this improved tracking performance enables you to take well-thought-out, strategic pictures anytime and anywhere.

Quick Shots, 2.7K Vertical Shooting, and MasterShots are the other features that will help expand your creativity. Use the LightCut app on your smartphone to establish a wireless connection with the Air 3 and access additional creative choices like One-Tap Edit. Throughout the process, there's no need to download every bit of film, which helps save up space on your mobile device.

The Waypoint Flight function is now accessible on the Air series for the first time. For Air 3, arrange flight paths and takeoffs ahead of time to accomplish challenging camera angles and breathtaking single shots. Additionally, you can store flight paths so that you can precisely repeat the same action at a later time. This allows you to take long-duration timelapse photos that record changes in light and season.

The DJI Air 3 is available in 3 variants and priced according to the accessories available:
•    DJI Air 3 (DJI RC-N2)
•    DJI Air 3 Fly More Combo (DJI RC 2)
•    DJI Air 3 Fly More Combo (DJI RC-N2)

In comparison to the normal version, the Fly More Combo edition of the Air 3 adds more necessary accessories and upgrades the remote controller for pilots who want to be well-prepared right out of the box. A shoulder bag, three additional pairs of low-noise propellers, two additional intelligent flight batteries, and an Air 3 battery charging hub are all included.

Equipped with DJI RC Motion 2, DJI Goggles Integra, and DJI Goggles 2, Air 3 is ready to deliver an incredible first-person flight experience.

Highlights:
•    Dual Wide-Angle & 3x Telephoto Cameras
•    4K100, 4K60 HDR, or 2.7K Vertical Video
•    1/1.3" CMOS Sensors & up to 48MP Stills
•    10-Bit D-Log M & 10-Bit HLG Color Modes
•    Up to 46 Minutes of Flight Time
•    Omnidirectional APAS 5.0 Avoidance
•    O4 1080p60 12.4-Mile Transmission
•    Multiple Pre-Programmed Flight Modes
•    Plan Routes in Advance with Waypoint
•    Smart RTH with Obstacle Avoidance
•    DJI RC 2 Remote & Fly More Accessories

SPECIFICATIONS:

Key Specs

Maximum Horizontal Speed: 47 mph / 75.6 km/h

Maximum Flight Time: 46 Minutes

Number of Cameras: 2

Camera System:
Wide: 48 MP, 1/1.3"-Type CMOS Sensor with 24mm-Equivalent, f/1.7 Lens (82° FoV)
Standard: 48 MP, 1/1.3"-Type CMOS Sensor with 70mm-Equivalent, f/2.8 Lens (35° FoV)

Maximum Video Resolution: All Cameras Up to UHD 4K at 100 fps / 1080p at 200 fps

Sensing System: Omnidirectional

Control Method: Included Transmitter with Smartphone/Mobile Device

Maximum Operating Distance: 12.4 Miles / 20 km

Mobile Device Compatibility: Devices up to 7.1" / 180 mm Wide and 0.4" / 10 mm Thick

Mobile App Compatible: Yes: Android & iOS

App Name: DJI Fly

Weight: 1.6 lb / 720 g (Takeoff)

Performance

Maximum Horizontal Speed: 47 mph / 75.6 km/h

Maximum Ascent Speed: 22.4 mph / 36.0 km/h

Maximum Descent Speed: 22.4 mph / 36.0 km/h

Maximum Wind Resistance: 26.8 mph / 43.1 km/h

Maximum Take-Off Altitude: 3.7 Miles / 6000 m

Maximum Flight Time: 46 Minutes

Maximum Hover Time: 42 Minutes

Maximum Tilt Angle: 35°

Hovering Accuracy
Vision Positioning
Vertical: ±0.3' / 0.1 m
Horizontal: ±1.0' / 0.3 m
GNSS
Vertical: ±1.6' / 0.5 m
High-Precision Positioning System
Horizontal: ±1.6' / 0.5 m

Maximum Angular Velocity: Not Specified by Manufacturer

Aircraft

Rotor Configuration: Quadcopter

Remote ID: Yes

Built-In Video Light: No

Aircraft I/O: 1x USB-C (Service)

Operating Temperature: 14 to 104°F / -10 to 40°C

Imaging

Number of Cameras: 2

Camera System
Wide: 48 MP, 1/1.3"-Type CMOS Sensor with 24mm-Equivalent, f/1.7 Lens (82° FoV)
Standard: 48 MP, 1/1.3"-Type CMOS Sensor with 70mm-Equivalent, f/2.8 Lens (35° FoV)

Digital Zoom
Wide: 1 to 3x
Standard: 3 to 9x

Minimum Focus Distance
Wide: 3.3' / 1 m
Standard: 9.8' / 3 m

ISO Sensitivity Range
All Cameras
Photo: 100 to 6400
Video: 100 to 12,600

Shutter Speed
All Cameras: 1/16000 to 8 Seconds (Photo)

Maximum Video Resolution
All Cameras: Up to UHD 4K at 100 fps / 1080p at 200 fps

Still Image Support
All Cameras: Up to 48 MP (DNG / JPEG)

Photo Modes: Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot

Media/Memory Card Slot

In Aircraft Body: microSD/microSDHC/microSDXC

In Remote/Transmitter: microSD/microSDHC/microSDXC (UHS-I) [U3/V30 or Faster Recommended]

Internal Storage
In Aircraft Body: 8 GB

Gimbal

Number of Axes: 3: Pitch (Tilt), Roll, Yaw (Pan)

Rotation Range
Mechanical Range: Yaw (Pan): 205° (-135 to 70°); Pitch (Tilt): 100° (-50 to 50°); Roll: 54° (-27 to 27°)
Controllable Range: Yaw (Pan): 10° (-5 to 5°); Pitch (Tilt): 150° (-90 to 60°)

Follow Speed: Tilt: 100°/s

Stabilization Accuracy: ±0.0037°

Avoidance/Sensing System

Sensing System: Omnidirectional

Sensing System Capabilities
Forward
Measurement Range: 1.6 to 59.1' / 0.5 to 18 m
Detection Range: 1.6 to 656.2' / 0.5 to 200 m
Max Speed: 26.8 mph / 12 m/s
Field of View: 90° (Horizontal) / 72° (Vertical)
Backward
Measurement Range: 1.6 to 59.1' / 0.5 to 18 m
Max Speed: 26.8 mph / 12 m/s
Field of View: 90° (Horizontal) / 72° (Vertical)
Lateral
Measurement Range: 1.6 to 98.4' / 0.5 to 30 m
Max Speed: 26.8 mph / 12 m/s
Field of View: 90° (Horizontal) / 72° (Vertical)
Upward
Measurement Range: 1.6 to 59.1' / 0.5 to 18 m
Max Speed: 13.4 mph / 6 m/s
Field of View: 72° (Front-to-Back) / 90° (Side-to-Side)
Downward
Measurement Range: 1.0 to 45.9' / 0.3 to 14 m
Max Speed: 13.4 mph / 6 m/s
Field of View: 106° (Front-to-Back) / 90° (Side-to-Side)

Remote Controller / Transmitter

Control Method: Included Transmitter with Smartphone/Mobile Device

Operating Frequency
2.4 GHz (2.4 to 2.4835)
5.1 GHz (5.170 to 5.250)
5.8 GHz (5.725 to 5.850)

Maximum Operating Distance: 12.4 Miles / 20 km

Transmitter Power
2.4 G: 33 dBm (FCC), 20 dBm (CE, MIC, SRRC)
5.1 G: 23 dBm (CE)
5.8 G: 33 dBm (FCC, SRRC), 14 dBm (CE)

Transmitter I/O: 1x USB-C Input (Power, Service)

Battery Type: Built-In Lithium-Ion (5200 mAh)

Wi-Fi: No

Bluetooth: No

Mobile Device Compatibility: Devices up to 7.1" / 180 mm Wide and 0.4" / 10 mm Thick

Mobile App Compatible: Yes: Android & iOS

App Name: DJI Fly

Operating Temperature: 14 to 104°F / -10 to 40°C

Flight Battery

Battery Chemistry: Lithium Nickel Manganese Cobalt Oxide (LiNiMnCoO2)

Battery Capacity: 4241 mAh / 62.6 Wh

Battery Configuration: 4 S / 14.8 V

Maximum Charging Power: 17 V

Charging Temperature: 41 to 104°F / 5 to 40°C

Weight: 9.4 oz / 267 g

General

GNSS Support: GPS, BeiDou, Galileo

Overall Dimensions
8.1 x 4.0 x 3.6" / 207.0 x 100.5 x 91.1 mm (Folded)
10.2 x 12.8 x 4.2" / 258.8 x 326.0 x 105.8 mm (Unfolded)

Weight: 1.6 lb / 720 g (Takeoff)

WHAT’S IN THE BOX:

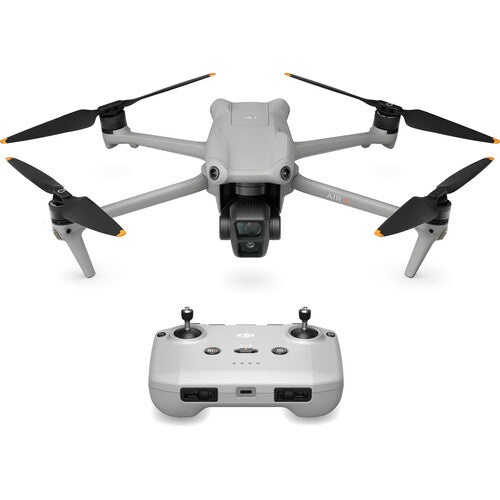

DJI Air 3 (DJI RC-N2)

1 x DJI Air 3 Drone with RC-N2
1 x RC-N2 Remote Controller
1 x DJI Intelligent Flight Battery for Air 3
3 x DJI Low-Noise Propellers for Air 3 (Pair)
1 x DJI Gimbal Camera Protector for Air 3
1 x RC-N2 USB-C RC Cable
1 x RC-N2 Lightning RC Cable
1 x USB-C Cable

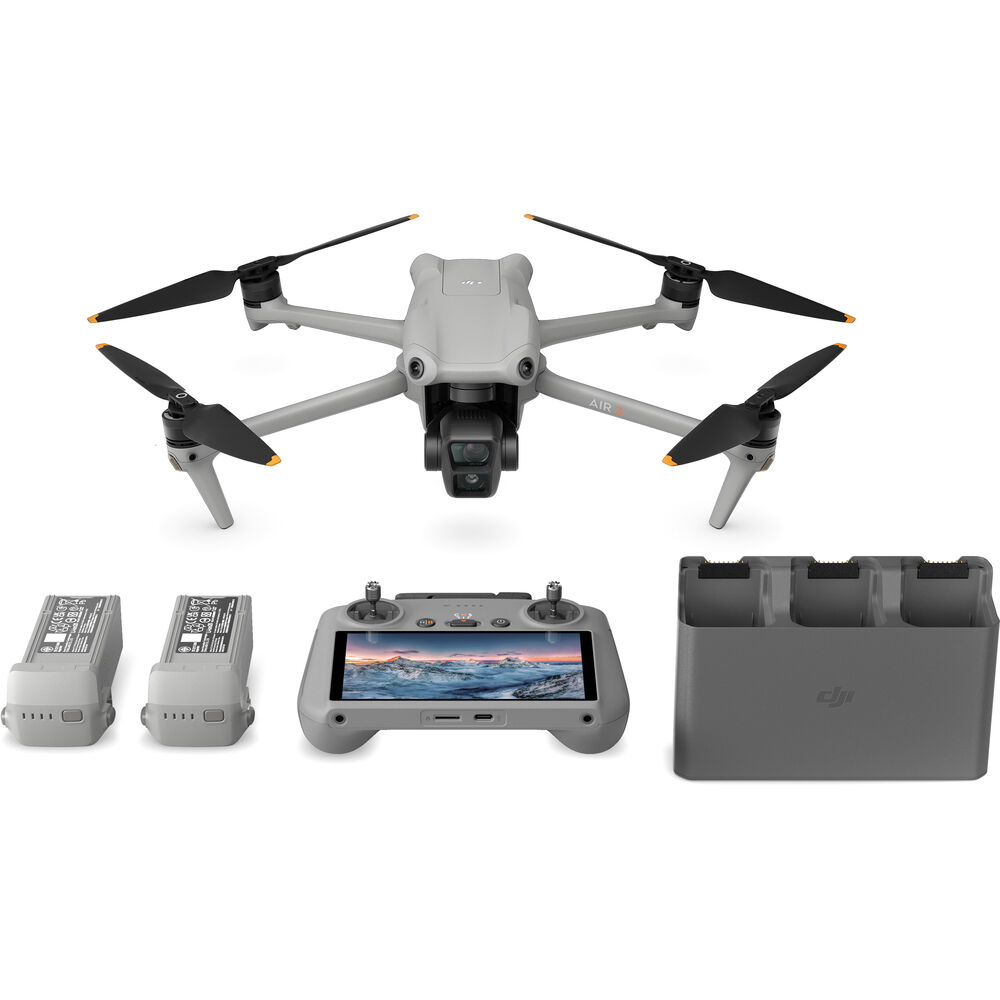

DJI Air 3 Fly More Combo (DJI RC 2)

1 x DJI Air 3 Drone Fly More Combo with RC 2
1 x DJI RC 2 Remote Controller
3 x DJI Intelligent Flight Battery for Air 3
1 x DJI Air 3 Battery Charging Hub
1 x Shoulder Bag
6 x DJI Low-Noise Propellers for Air 3 (Pair)
1 x DJI Gimbal Camera Protector for Air 3
1 x USB-C Cable
Limited 1-Year Manufacturer Warranty (Excluding Propellers)
Limited 1-Year Manufacturer Warranty (Battery: 1-Year and Less than 200 Charge Cycles)

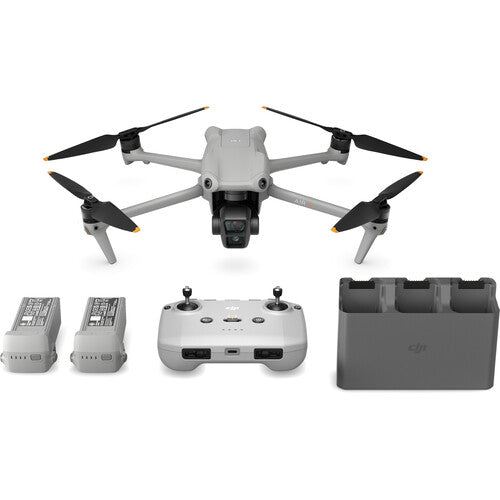

DJI Air 3 Fly More Combo (DJI RC-N2)

1 x DJI Air 3 Drone Fly More Combo with RC-N2
1 x RC-N2 Remote Controller
1 x USB-C RC-N2 Remote Cable
1 x Lightning RC-N2 Remote Cable
3 x DJI Intelligent Flight Battery for Air 3
1 x DJI Air 3 Battery Charging Hub
1 x Shoulder Bag
6 x DJI Low-Noise Propellers for Air 3 (Pair)
1 x DJI Gimbal Camera Protector for Air 3
1 x USB-C Cable
