Autel Robotics EVO MAX 4T XE Bundle
A penuntimate drone bundle from Autel Robotics, the EVO MAX 4T XE is a gimbal equipped intuitive drone with integrated wide, zoom and thermal cameras features a laser Rangefinder sensor to scan even GPS unavailable areas and carry out successful missions one after another.
LEADER OF DRONE INTELLIGENCE
Designed to rule the world of Drones, EVO MAX 4T XE boasts of powerful technologies. Fitted with advanced sensors to plot even GPS unchartered territories, EVO MAX 4T assesses complex scenarios and creates real-time 3D flight paths for uninterrupted missions. The all new thermal payload unlocks newer levels objects identification and tracking scenarios.
MISSION READY PAYLOAD
The compact drone boasts of a mission ready payload with integrated wide-angle, zoom and thermal cameras with a laser Rangefinder that help capture every little details aiding an informed decision making.
Highlights:
- Laser Rangefinder to tap a target up to 0.75 miles away
- 8K 10x Optical zoom and 160x max. hybrid zoom for targets up to 1.24 miles away
- 640 x 512 High resolution thermal imaging camera
- Moonlight algorithm with 2.0 boosts to support 4K 30fps, Moonlight mode reduces noise and enhances HDR
ULTIMATE OBSTACLE AVOIDANCE
EVO MAX 4T fuses the traditional binocular vision system with millimeter wave radar technology allowing the onboard Autel Autonomy engine to identify objects as tiny as 0.5 inch, eliminating blind spots even in the worst weather scenarios.
ANTI JAM, ANTI INTERFERENCE
EVO MAX 4T counters RFI, EMI and GPS spoofing with its advanced flight control modules and algorithms. So no matter how complex or critical the oncoming structure is, our Drone aces the flight even through complicated grid lines.
EVO MAX 4T XE BUNDLE
- A-Mesh Systems for drone-to-drone communication
- Full fleet control with enhanced range
- Autel enterprise app platform to control your enterprise mission from a single console
- Autel SkyLink 3.0 with 6 antennas, 4 frequency bands, AES-256 encryption and optional 4G integration for advanced flight capabilities
- Complete data security with Radio Link Encryption
- All weather design with IP43 weather rating
Specifications:
AIRCRAFT
Weight: 3.62 lbs (1640g, battery and gimbal included)
Max. Takeoff Weight: 4.41 lbs (1890 g)
Dimensions: 576*660*149 mm(fold, incl. propellers) 340*407*148 mm(fold, excl. propellers) 257*136*133 mm (unfold, excl. propellers)
Diagonal Wheelbase: 464mm
Max Ascent Speed : 8m/s
Max Descent Speed: 6m/s
Max Horizontal Speed (windless near sea level): 23m/s
Maximum Takeoff Altitude: 13,124 ft (4000m)
Max Flight Time (windless): 42 mins
Max Hover Time (windless): 38 mins
Max Wind Resistance: 27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
IP Rating : IP43
Max Tilt Angle: 35°
Max Angular Velocity Pitch: 300°/s; Yaw: 120°/s
Operating Temperature: -20℃～+50℃
Operating Frequency: 2.4G/5.2G*/5.8G/900MHz* *5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.
GNSS: GPS + Galileo + BeiDou + GLONASS
Transmitter Power (EIRP)
2.4GHz: <33dBm (FCC, <20dBm(CE/SRRC/MIC)
5.8GHz: <33dBm(FCC), <30dBm(SRRC), <14dBm(CE)
5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC)
5.25-5.35GHz: <30dBm(FCC), <23dBm(SRRC/MIC)
Hovering Accuracy
Vertical: ±0.1 m (Vision System enabled); ±0.5 m (GNSS enabled); ±0.15 m (RTK enabled);
Horizontal: ±0.3 m (Vision System enabled); ±0.5 m (GNSS enabled); ±0.1 m（RTK enabled）
GIMBAL
Mechanical Range
Pitch: -135° to 45°
Roll: -45° to 45°
Yaw: -45° to 45°
Controllable Range: -90° to 30°
Stable system: 3-axis mechanical gimbal (pitch, roll, pan)
Max. Control Speed (pitch): 200º/s
Angular Vibration Range: <0.005°
ZOOM CAMERA (TELEPHOTO)
Sensor: 1/2" CMOS, Effective pixels: 48M
Lens
Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm)
Aperture: f/2.8-f/4.8
Exposure Compensation: ±3EV 0.3EV/step
ISO Range
Normal Mode：
Auto: ISO100 ~ ISO6400
Manual:
Photo: ISO100 ~ ISO12800
Video: ISO100 ~ ISO6400
Electronic Shutter Speed
Photo: 8s ~ 1/8000
Video: 1s ~ 1/8000
Max Photo Size: 8000×6000
Max. Video Resolution: 4000×3000
WIDE CAMERA
Sensor: 1/1.28 CMOS, Effective pixels: 48M, Night mode: 12.50M
Lens
DFOV：83.4°
Focal length: 4.49 mm (equivalent: 24 mm)
Aperture: f/2.8
AF motor: 8-wire SMA, PDAF focus
Exposure Compensation: ±3EV 0.3EV/step
ISO Range
Auto:
Photo: ISO100~ISO6400
Video: ISO100~ISO64000 (Night mode: up to ISO64000)
Manual:
Photo: ISO100~ISO12800
Video: ISO100~ISO6400
Electronic Shutter Speed
Photo: 8s ~ 1/8000
Video: 1s ~ 1/8000
Max. Video Resolution: 3840×2160
Photo Size: 8192*6144, 4096*3072
THERMAL CAMERA
Thermal Imager: Uncooled VOx Microbolometer
Lens
DFOV: 42°
IFOV: 0.92mrad
Aperture: f/1.0
Focus: 9.1mm
Infrared Temperature Measurement: Accuracy 26.6~37.4 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉
Video Resolution: 640*512
Photo Size: 640*512
Pixel Pitch: 12 um
Temperature Measurement Method: Center measurement, pot measurement, Rectangular measurement
Temperature Measurement Range: -4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C)
Temperature Alert : High and low temperature alarm thresholds, reporting coordinates and temperature values
Palette: White Hot/Black Hot/Searing/Rainbow/Grey/Ironbow/Cold and Hot
LASER RANGEFINDER
Measurement Accuracy: ±1m
Measuring Range: 1.2km
IMAGE TRANSMISSION
Operating Frequency: 2.4G/5.2G*/5.8G/900MHz* *5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.
Max Transmission Distance (unobstructed, free of interference): 20km(FCC), 8km(CE)
Independent Networking: 7.9-inch Smart Controller
Transmitter Power (EIRP)
2.4GHz: <33dBm（FCC）, <20dBm(CE/SRRC/MIC)
5.8GHz: <33dBm(FCC), <30dBm(SRRC), <14dBm(CE)
5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC)
5.25-5.35GHz: <30dBm(FCC), <23dBm(SRRC/MIC)
AUTONOMY
Non-GPS Hovering and Manual Flight
Indoor: Horizontal error ≤3cm （At least have texture at one direction）
Outdoor:
Daytime: Within 500m flight height, horizontal error < 0.01*height
Night: Manual flight is controllable within 100m flight height
Non-GPS Return-to-Home: Within 500m flight height, horizontal error of Return-to-Home point < 30cm
Automatic Obstacle Rerouting: High Speed Obstacle Rerouting: Flight speed up to 45mph(20m/s) when Min. safety distance to obstacle is 4.9ft (1.5m)
High Precision Obstacle Rerouting: Flight speed could reach 6.7mph(3m/s) when Min. safety distance to obstacle is 1.6ft (0.5m)
Multi-target Recognition and Tracking: Target identification types: people, vehicles, boats
Number of targets detected: 64
Comprehensive recognition accuracy: > 85%
MILLIMETER-WAVE RADAR SENSING SYSTEM
Frequency: 60Ghz~64Ghz*
Size 1.5*0.55*0.08 in（L*W*H）
Weight: 0.07oz (2g)
EIRP: 18dBm
Sensing Range
Upward: 5.9~787.4in (0.15~20m)
Downward: 3.9~4724.4in(0.1~120m)
Forward and Backward (Standard/Comfortable): 0.82~98.43ft (0.25~30m)
Forward and Backward (Ludicrous): 1.64~196.85ft (0.5~60m)
FOV Horizontal (6dB)：±60°，Vertical（6dB）：±30°
Speed Measurement Range: ± 134mph (60m/s)
Speed Measurement Accuracy: ≤1%
Max. Target Detection Number: 32
VISUAL SENSING SYSTEM
Obstacle Sensing Range: Forward/Upward/Downward/Backward/Sideward: 0.2~50m
FOV Forward/Backward/Sideward: 60°(H)，80°(V)
Upward/Downward: 360°(H)，190°(V)
GENERAL
Screen: 7.9 inch, 2000nits max. brightness, 2048*1536 resolution
External Battery Capacity: 5800mAh
Voltage: 11.55V
Battery Type: Li-on
Energy: 67Wh
Charing time: 120mins Intelligent Lithium Ion Battery
Operating Time: 3 hours (Max. brightness) 4.5 hours (50% brightness)
Max Transmission Distance (with interference) FCC: 20km
CE: 8km
IP Rating: IP43
Storage: 128G
GNSS: GPS + GLONASS + Galileo + Beidou + NavIC + QZSS
Operating Temperature: -20℃ to 40℃
WIFI
Protocol; WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi
Operating Frequency: 2.400 - 2.4835 GHz； 5.150 - 5.250GHz； 5.725 ‒ 5.850 GHz
Transmitter Power (EIRP): 2.400 - 2.4835 GHz
FCC/CE:≤20dBm
5.150 - 5.250GHz
FCC:≤17dBm
5.725 ‒ 5.850 GHz
FCC:≤17dBm
CE:≤14dBm
BATTERY
Capacity: 8070mAh
Voltage: 14.88V
Battery Type: LiPo 4S
Energy: 120wh
Net Weight: 520g
Charging Temperature: 5ºC to 45ºC(When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in low temperature may shorten
the lifetime of the battery)
Hot Swap: Support

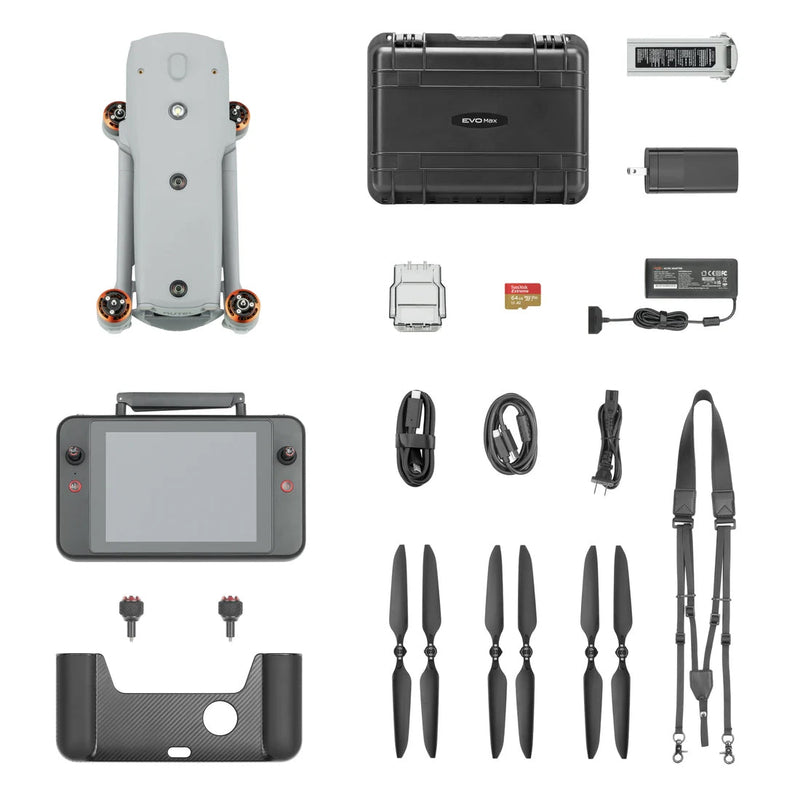

What's in the Box:
1 x Aircraft (Battery, Propeller, Gimbal, Gimbal Cover, 64G SD card included)
1 x Smart Controller V3 (sticks included)
1 x Pair of Spare Propeller
1 x Battery Charger
1 x RC Charger
1 x Data Cable
1 x RC Charging Cable
1 x Smart Controller Lanyard
1 x Smart Controller Cover
1 x Smart Controller Spare Joystick
1 x Rugged Case
1 x Manual
