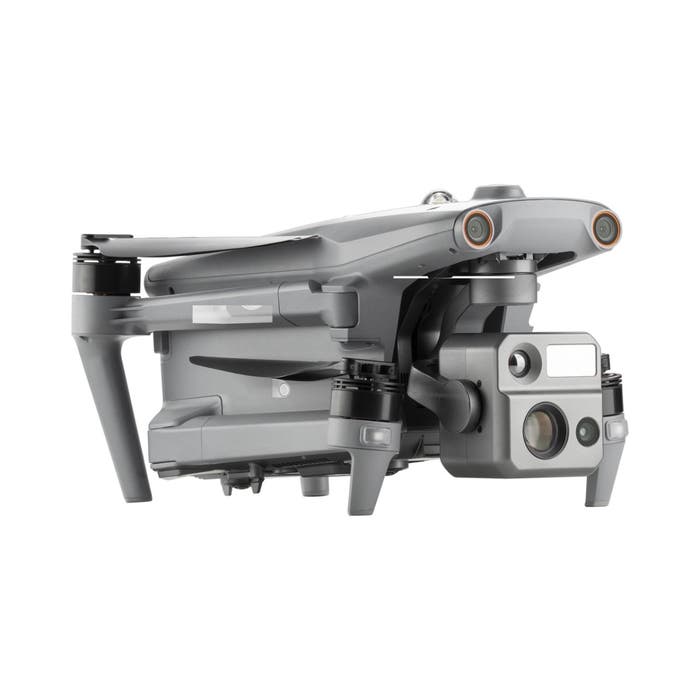

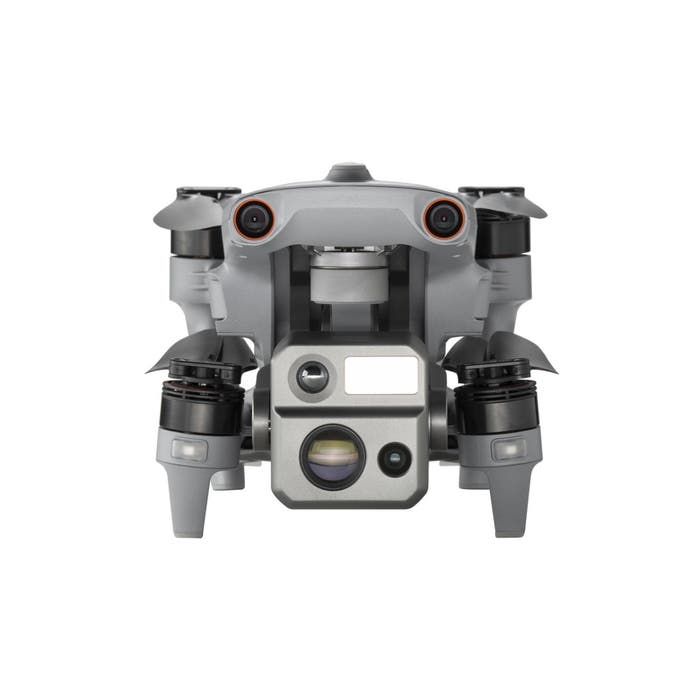

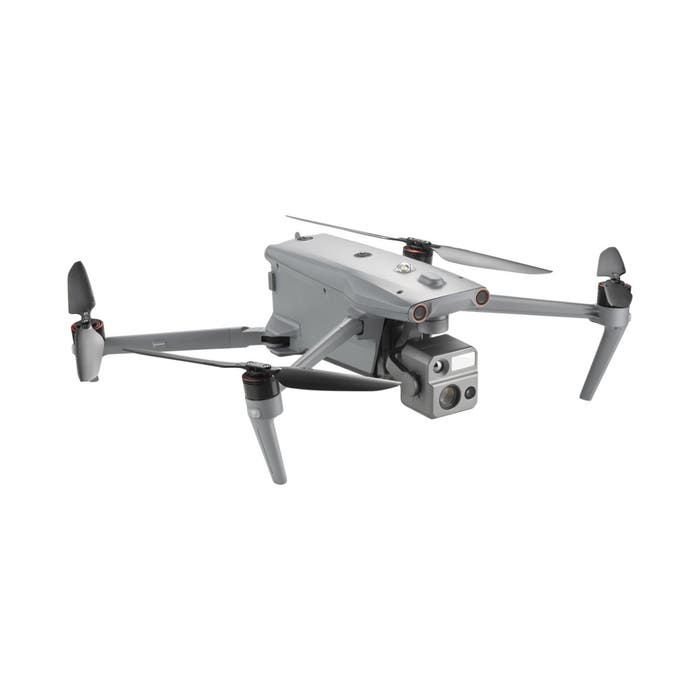

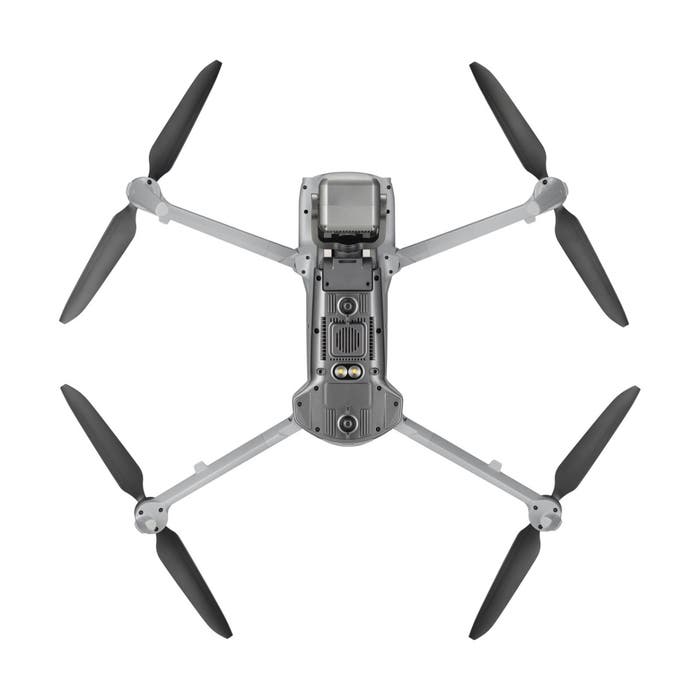

Autel EVO Max 4N Bundle

Autel EVO Max 4N presents an entirely new level of potential for users, pushing the boundaries on what is achievable with drones. It features powerful technologies and advanced autonomy to navigate complex environments in real-time with 3D flight paths.

Perform unprecedented obstacle avoidance maneuvers as well as open up opportunity for flights without GPS signal--all while keeping a foldable, weather-resistant design for unbeatable portability. And now it's even easier to identify and track objects thanks to its cutting-edge thermal payload!

The EVO Max 4N is equipped with a detachable payload perfect for multiple use cases. Two screws remove the payload, making for quick repairs, swaps, or upgrades. But the best about it are the following components:

Starlight camera

Explore the night with targets locked and tracked. This 2.3MP camera lets you shoot in low-light environments with clarity and in detail.

Wide camera

This 50MP camera can capture 4K 30fps videos with max ISO of 64000. The Moonlight Algorithm 2.0 boosts post-processing and allows you to capture crisp, detailed images in low-light environments. Expect reduced noise and enhanced HDR in photos.

Thermal camera

This 640x512 high-resolution thermal imaging camera supports 30fps videos and 16x digital zoom.

Laser rangefinder

This allows you to get the coordinates and altitude of a target from up to 0.75 miles away just with a tap on the RC screen.

The Autonomy Engine from Autel gathers environmental data from the immediate area and designs 3D flying pathways through challenging terrain including mountains, woods, and structures. Rapid 3D scene reconstruction, public safety surveillance, industrial inspection, and land surveying are examples of use cases.

The EVO Max 4N can navigate in areas without GPS, underground, or inside of fortified structures thanks to its advanced sensors. The EVO Max 4N can achieve high-altitude tracking and data collecting for law enforcement thanks to Autel's AI recognition technology, which enables it to instantly recognize and latch onto a variety of objects like heat sources, moving persons, or moving vehicles. The EVO Max 4N can achieve high-altitude tracking and data collecting for law enforcement thanks to Autel's AI recognition technology, which enables it to instantly recognize and latch onto a variety of objects like heat sources, moving persons, or moving vehicles.

Made for multiple industries and use cases

The Autel EVO Max 4 is designed to be used by multiple industries for various use cases.
Law enforcement

Subject monitoring & tracking

General reconnaissance & intel gathering

Disaster response

Scene photography and reconstruction

Pre-planning & situational response
Fire and rescue

Identify fire lines

Maintain fire breaks

Inspection of structures & hot spots

Visual access to areas with difficult terrain

Identify impassable areas for support aircraft
Utilities and infrastructure

Simplified tower inspection

Power & pipeline inspection

Wind turbine inspection

Grid mapping & surveying

Site patrol & security
Construction

Site planning & evaluation

Monitoring & tracking

Progress reports, validation, & proof of execution

Site patrol & security
Mining and mapping

Planning & progress monitoring

Volumetric

Change detection

Remediation

Safety, security, and surveillance
Content and media

Real-time coverage of events

Incident reconstruction & storytelling

Photos & videos in hard to reach locations

Content creation & cinematography

Frequent updates & reports on key topics
- Autel Robotics EVO Max 4N Drone
- Smart Controller V3 with Sticks
- Battery
- Propeller
- Gimbal
- Gimbal Cover
- 64GB SD Card
- Battery Charger and Power Cable
- 2x Pair of Spare Propeller
- Screwdriver
- 4x Screws
- Smart Controller Lanyard
- Smart Controller Cover
- 2x Smart Controller Spare Joystick
- RC Charger
- RC Charging Cable
- Data Cable
- Rugged Case
- User Manual
- Autel Robotics 1 Year Limited Warranty

EVO Max Series (4T/4N) Specifications
Aircraft
EVO Max 4T Weight	3.57 lbs (1620g, battery and gimbal included)
EVO Max 4N Weight	3.62 lbs (1641g, battery and gimbal included)
Max. Takeoff Weight	4.41 lbs (1999g)
Dimensions	562×651×147mm (unfolded, incl. propellers)
	318×400×147mm (unfolded, excl. propellers)
	257×145×131mm (folded, excl. propellers)
Diagonal Wheelbase	1.53 ft (466mm)
Max Ascent Speed	8m/s
Max Descent Speed	6m/s
Max Horizontal Speed* (windless near sea level)	23m/s *Maximum speed in Ludicrous Mode is 19m/s in EU regions.
Max Takeoff Altitude	13,124 ft (4000m)
Max Flight Time (windless)	42 mins
Max Hovering Time (windless)	38 mins
Max Wind Resistance	27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
IP Rating	IP43
Max Tilt Angle	35°
Max Angular Velocity	Pitch: 300°/s，Yaw: 120°/s
Operating Temperature	-4°F to 122°F (-20℃ to 50℃)
Internal Storage	128GB internal storage, with 64GB of available space* (Remaining available space will vary with different firmware versions)
Operating Frequency	2.4GHz/5.8GHz
	5.2GHz (only applicable for FCC, CE, and UKCA regions).
	900MHz (only applicable for FCC regions).
GNSS	GPS+Galileo+BeiDou+GLONASS
Hovering Accuracy	Vertically:
	±0.1 m (when vision systems working normally)
	±0.5 m (when GNSS working normally)
	Horizontally:
	±0.3 m (when vision systems working normally)
	±0.5 m (when GNSS working normally)
Wi-Fi Protocol	802.11a/b/g/n/ac/ax
Wi-Fi Protocol	Supports 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency	2.400-2.4835GHz
	5.150-5.250GHz (CE/FCC/MIC)
	5.725-5.850GHz (excluding MIC)
Wi-Fi Transmitter Power (EIRP)	2.400-2.4835GHz
	FCC: <30dBm
	CE/SRRC/MIC: <20dBm
	5.150-5.250GHz
	FCC/CE/MIC: <22dBm
	5.725‒5.850GHz
	FCC/SRRC: <21dBm
	CE: <14dBm
Gimbal
Mechanical Range	Pitch: -135° to 45°
	Yaw: -45° to 45°
	Roll: -45° to 45°
Controllable Range	-90° to 30°
Stability System	3-axis mechanical gimbal (pitch, yaw, roll)
Max Control Speed (Pitch)	200°/s
Angular Vibration Range	<0.005°
EVO Max 4T Zoom Camera (Telephoto)
Sensor	1/2" CMOS, Effective pixels: 48M
Lens	Focal Length: 11.8-43.3mm(35mm, equivalent：64-234mm)
	Aperture: f/2.8-f/4.8
	Focusing distance: 5m ~ ∞
Exposure Compensation	±3EV 0.3EV/step
ISO Range	Normal Mode
	Auto: ISO100 - ISO6400
	Manual
	Photo: ISO100 - ISO12800
	Video: ISO100 - ISO6400
Shutter Speed	Photo: 8s - 1/8000s
Shutter Speed	Video: 1s - 1/8000s
Max. Photo Resolution	8000×6000
Max. Video Resolution	7680×4320
EVO Max 4T Thermal Camera
Thermal Imager	Uncooled VOx Microbolometer
Lens	FOV：42°
	Focal length: 13mm
	Aperture: f/1.2
	Focusing Distance: 6m ~ ∞
Infrared Temperature Measurement Accuracy	±3℃ or reading ±3% (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃~60℃)
Video Resolution	640×512@25FPS
Photo Size	640×512
Pixel Pitch	12um
Temperature Measurement Method	Center measurement, pot measurement, rectangular measurement
Temperature Measurement Range	-4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C)
Temperature Alert	High and low temperature alarm thresholds, reporting coordinates and temperature values
Palette	White Hot/Black Hot/Searing/Rainbow/Grey/Ironbow/Cold and Hot
EVO Max 4N Night Vision Camera
Sensor	Effective Pixels: 2.3M
Lens	Focal Length: 35mm (equivalent 41.4mm)
	FOV：52°
	Zoom Range: 1-8x, supports linkage zoom
ISO Range	Auto: ISO100-ISO450000
ISO Range	Super Sensitive Mode: Auto ISO100-ISO450000
Camera Modes	Single shot (default), long press for continuous shots
Photo Format	JPG
Photo Resolution	1920×1200
Video Format	MP4
Video Resolution	20Mbps (1920×1200 P30)
HDR Video	Auto
Video Output	Super Sensitive Mode: 1920×1200 P30
EVO Max 4N Thermal Camera
Sensor	Uncooled VOx Microbolometer
Lens	FOV：61°
	Focal length: 9.1mm
	Aperture: f/1.0
	Focusing Distance: 2.2m ~ ∞
Infrared Temperature Measurement Accuracy	±3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃-60℃)
Video Resolution	640×512@30FPS
Photo Size	640×512
Pixel Pitch	12um
Temperature Measurement Method	Center measurement, pot measurement, rectangular measurement
Temperature Measurement Range	-4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C)
Temperature Alert	High and low temperature alarm thresholds, reporting coordinates and temperature values
Palette	White Hot/Black Hot/Searing/Rainbow/Grey/Ironbow/Cold and Hot
Wide-Angle Camera
Sensor	1/1.28 CMOS, Effective pixels: 50M
Lens	DFOV: 85°
	Focal Length: 4.5 mm (equivalent: 23 mm)
	Aperture: f/1.9
	AF motor: 8-line SMA, PDAF focusing
	Focusing Distance: 1m ~ ∞
Exposure Compensation	±3EV 0.3EV/step
ISO Range	Auto:
	Photo: ISO100-ISO6400
	Video: ISO100-ISO64000 (Night mode: up to ISO64000)
	Manual:
	Photo: ISO100-ISO12800
	Video: ISO100-ISO6400
Shutter Speed	Photo: 8s - 1/8000s
Shutter Speed	Video: 1s - 1/8000s
Max. Video Resolution	3840×2160
Photo Size	4096×3072
Laser Range Finder
Measurement Accuracy	± (1m + D×0.15%) where D is the distance to a vertical surface
Measuring Range	5-1200m
Image Transmission
Operating Frequency	2.4GHz/5.8GHz
Operating Frequency	900MHz (only applicable to FCC regions).
Max Transmission Distance (unobstructed, free of interference)	12.4 miles/20km (FCC)
	4.9 miles/8km (CE)
Transmitter Power (EIRP)	2.4GHz
	FCC: <30dBm
	CE/SRRC/MIC: <20dBm
	5.8GHz
	FCC/SRRC: <27dBm
	CE: <14dBm
	5.15-5.25GHz
	FCC/CE: < 23dBm
	902-928MHz
	FCC: <30dBm
	5.65-5.755GHz
	MIC: <27dBm
Visual Sensing System
Obstacle Sensing Range	Forward: 19.7-1220.5in (0.5-31m)
	Backward: 19.7-984.3in (0.5-25m)
	Sidewards: 19.7-1023.6in (0.5-26m)
	Upward: 0.66-85.3ft (0.2-26m)
	Downward: 0.98-75.5ft (0.3-23m)
FOV	Forward/Backward Sensor: 60°(H), 80°(V)
FOV	Upward/Downward Sensor: 180° (sidewards), 120° (forwards, backwards)
Operating Environment	Forward, Backward, Sidewards, Upward:
	The surface has rich texture, under sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment)
	Downwards:
	The surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment)
Millimeter-wave Radar Sensing System
Frequency	60GHz/24GHz*
Frequency	*For 60Ghz use, please fly safely and comply with your local laws and regulations.
Sensing Range	60GHz Radar:
	Upward: 0.98-787.4in (0.3-20m)
	Downward: 5.9-3149.6in (0.15-80m)
	Forward and Backward: 0.98-98.43ft (0.3-50m)
	24GHz Radar:
	Downward: 2.62-39.4ft (0.8-12m)
FOV	Horizontal (6dB): ±60°/±22° (24G/60G)
FOV	Vertical (6dB): ±30°/±20° (24G/60G)
Operating Environment	60GHz Millimeter-wave Radar Sensing System
	Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 4 directions: forwards, backwards, and above and below. Its obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size.
	24Ghz Millimeter-wave Radar Sensing System
	Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3cm is less than 6 meters.
Radar and Visual Sensing Systems
Sensing Range	Forward & Backward: 11.8-1968.5in (0.3-50m)
	Sidewards: 19.7-1023.6in (0.5-26m)
	Upward: 0.66-85.3ft (0.2-26m)
	Downward: 0.49-262.5ft (0.15-80m) (60Ghz radar)
FOV	Forward/Backward Sensor: 80°(H), 120°(V)
FOV	Upward/Downward Sensor: 180° (sidewards), 120° (forwards & backwards)
Operating Environment	Forward, Backward, Upward, Downward:
	Supports all-weather obstacle avoidance for glass, water, twigs, buildings and high voltage lines. At least one of the 2 conditions should be met: sufficient lighting or the obstacle has a strong reflection ability to electromagnetic waves.
	Sidewards:
	The surface has rich texture, under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment)
Aircraft Battery
Capacity	8070mAh
Voltage	14.88V
Battery Type	LiPo 4S
Energy	120Wh
Net Weight	1.15 lbs (520g)
Charging Temperature	-4° F to 113° F (-20ºC to 45ºC) (When the temperature is lower than 41° F (5° C), the self-heating function will be automatically activated. There should be at least around 10% of remaining power for heating.)
Hot Swappable	Supported
Autel Smart Controller V3
Screen	Size: 7.9 inches
	Resolution: 2048×1536
	Max Brightness: 2000nits
Battery	Capacity: 5800mAh
	Voltage: 11.55V
	Battery Type: Intelligent Lithium Ion Battery
	Energy 67Wh
	Charging time: 120 minutes
Operating Time	2.5 hours (Max. brightness)
Operating Time	4.5 hours (50% brightness)
Max Transmission Distance (without interference)	12.4 miles/20km (FCC)
Max Transmission Distance (without interference)	4.9 miles/8km (CE)
IP Rating	IP43
Storage	128GB
GNSS	GPS+GLONASS+Galileo+Beidou
Transmitter Power (EIRP)	2.4GHz
	FCC: <28dBm
	CE/SRRC/MIC: <20dBm
	5.8GHz
	FCC/SRRC: <28dBm
	CE: <14dBm
	902-928MHz
	FCC: <28dBm
	5.65-5.755GHz
	MIC: <31dBm
Operating Temperature	-4°F to 104°F (-20℃ to 40℃)
Wi-Fi Protocol	Wi-Fi Direct, Wi-Fi Display
	802.11a/b/g/n/ac
	Supports 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency	2.400-2.4835 GHz
	5.150-5.250GHz* (MIC only)
	5.725‒5.850GHz* (excluding MIC)
Wi-Fi Transmitting Power (EIRP)	2.400-2.4835GHz
	FCC:＜23dBm
	CE/SRRC/MIC:＜20dBm
	5.150-5.250GHz
	MIC:＜17dBm
	5.725‒5.850GHz
	FCC/SRRC:＜22dBm
	CE:＜14dBm
