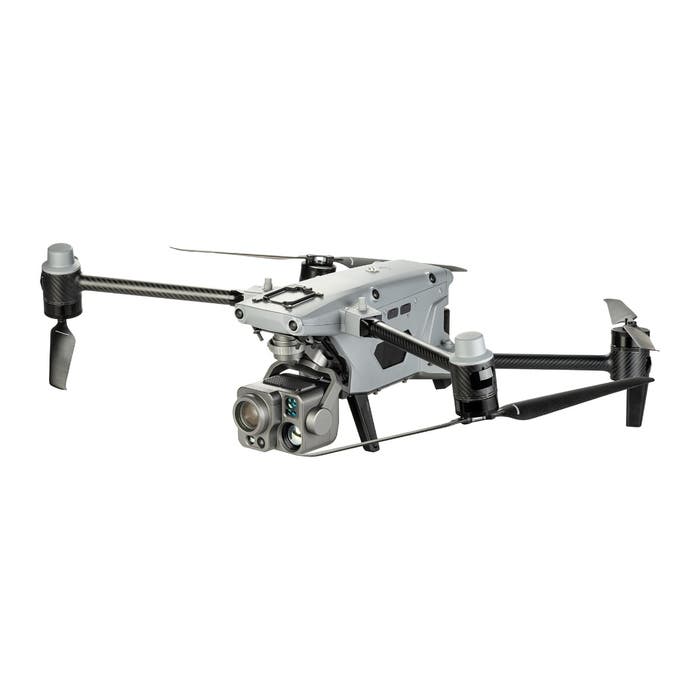

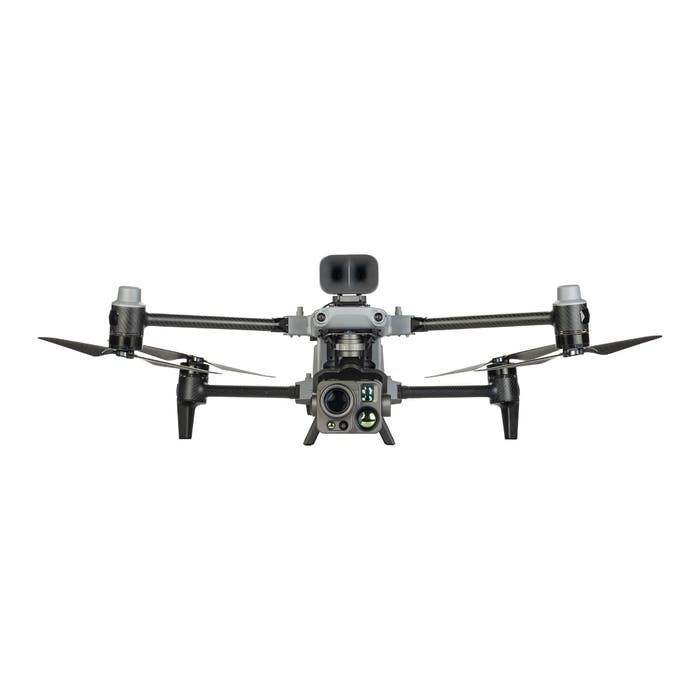

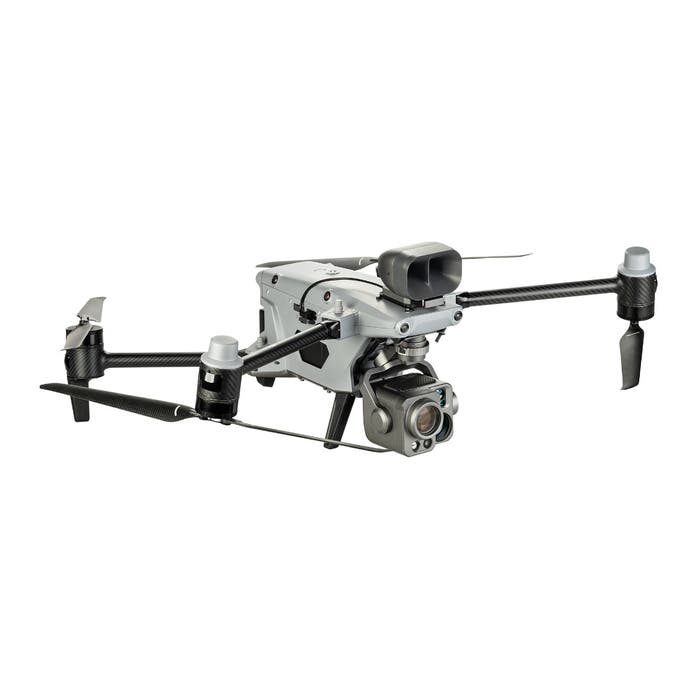

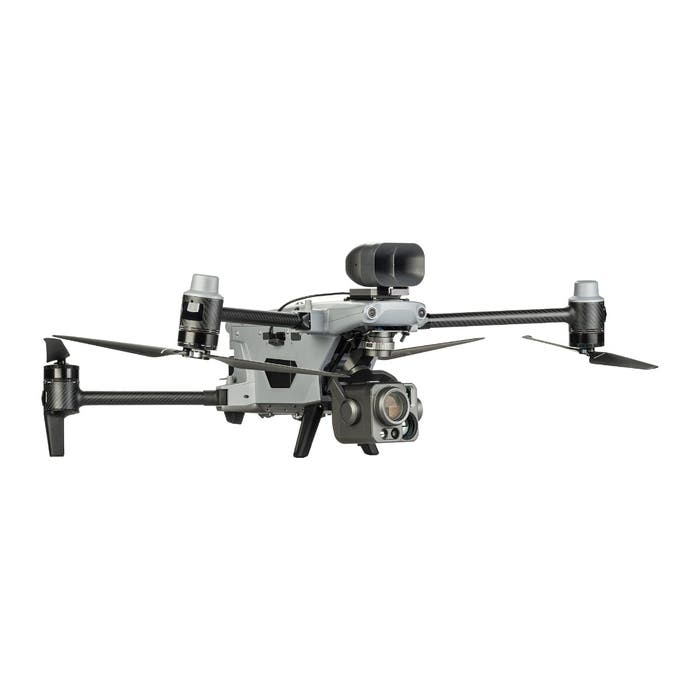

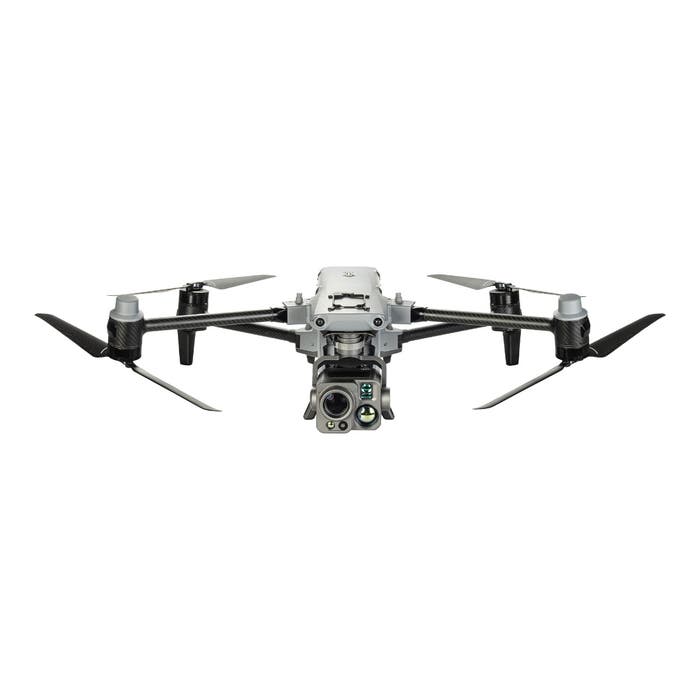

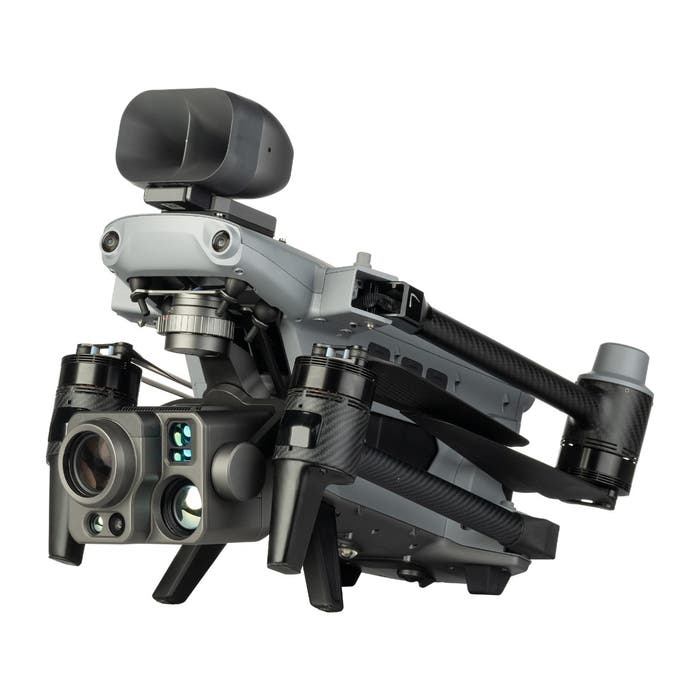

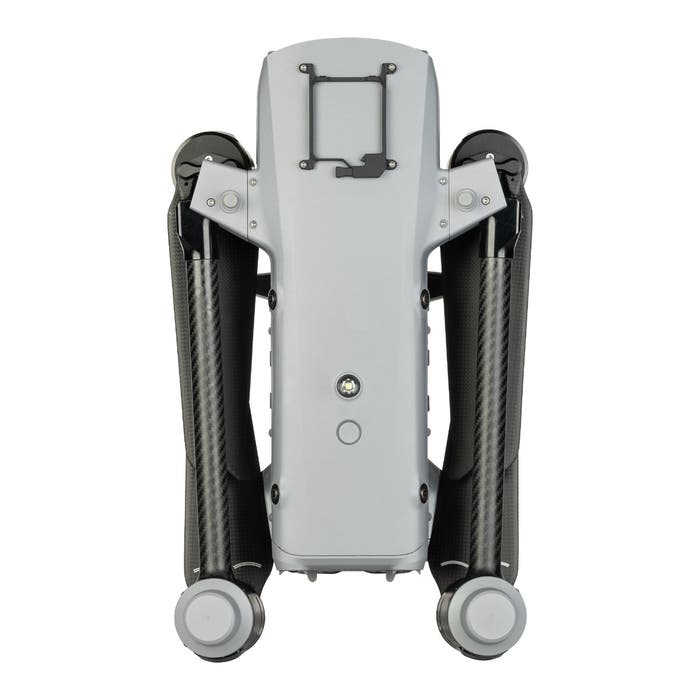

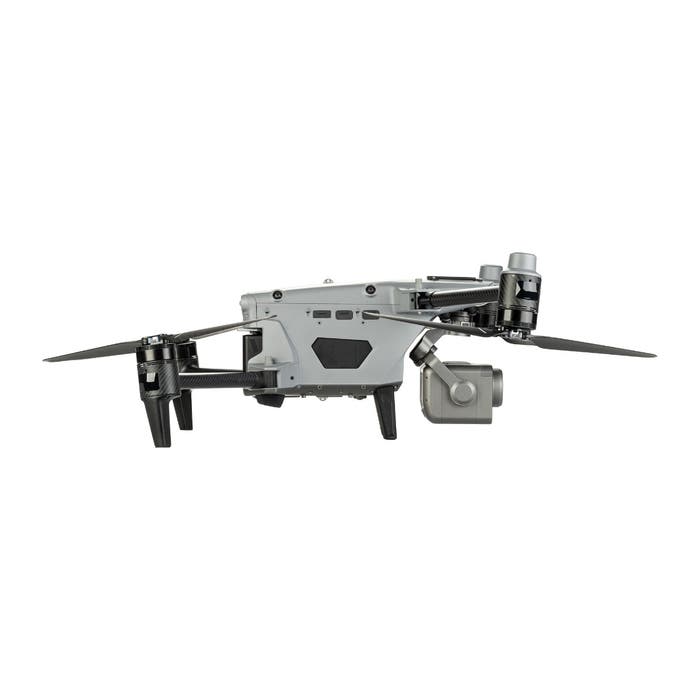

Autel Alpha with L35T with Gimbal

Autel Alpha with L35T with Gimbal

Autel Alpha, the all-new, highly anticipated enterprise-level UAV from Autel Robotics is finally here. Complex engineering simplified to cater to the advanced needs of professional sectors, the Autel Alpha has captured attention at the June 2023 Energy Drone and Robotics Summit. Add the recent FCC approval and you have the ultimate Autel Alpha UAV with exceptional features dancing to your tunes.

RANGE AND ENDURANCE

Weighting as light as 13.5 pounds, Autel Alpha boasts of a whopping 12.5 mile transmission range and an optimal flight time of 40 minutes letting you enjoy extreme connectivity and smart power management. Autel Alpha can hover for full 38 minutes  aiding in critical search and rescue operations.

WEATHER RESISTANT

Come rain or shine, the IP55 weather proofing rated Autel Alpha is ready to take off in all weather conditions. With an operating temperature range of -20℃ to +50℃ this UAV captures stunning images and videos from snowy peaks to sun kissed beaches and rainy marsh lands.

CAMERA AND IMAGING SUITE

Loaded with multiple cameras tailor-made for various professional applications, Autel Alpha comes with a primary 1/2" CMOS wide camera sensor with 48MP, a 24mm equivalent lens and an f/2.8 aperture with an ISO of up to 6400 for photos and 64000 for videos, capturing in JPG, DNG, MP4 and MOV formats.

Alpha's Zoom Camera comes with a 1/1.8" CMOS sensor with 48 MP, 1-35X optical zoom and up to 560X digital zoom. With a variable aperture lens and wide ISO range, Autel Alpha is crafted for aerial surveillance.

Augmenting the purpose of UAV to the next level, Autel Alpha boasts of 2 Thermal Cameras, Wide and Tele, which use uncooled VOx Microbolometers operating a temperature range of -20℃ to +50℃, making this the most ideal robot drone for industrial inspections and emergency operations.

720-DEGREE OMNI DIRECTIONAL DETECTION

Autel Alpha comes with a 360-degree obstacle detection which is rightly supported with its ultra-tech 720-degree omni directional detection. Cleverly dodging aerial disturbances from all directions, this UAV operates on 2.4/5.2/5.8 GHz frequency bands and clocks speeds of 24 m/s even as it resists winds up to 15 m/s.

SATELLITE NAVIGATION

From tracking locations to counting objects to advanced search and rescue operations, Autel Alpha AI uses GPS, GLONASS, BeiDou and Galileo to keep track of people, vehicles, boats and other things that may interest you.

SAFETY FEATURES

Perfected for emergency operations, Autel Alpha includes enhanced anti-interference capabilities with AES-256 encryption for anti-jamming. Compatible for multiple payloads Autel Robotics guarantees safety and reliability to your sensitive operations.

APPLICATIONS

The versatility of Autel Alpha makes it the perfect UAV for agricultural operations like crop health monitoring, soil moisture detection and livestock management. The wide range and zoom cameras provide accurate 2D and 3D models for planning and monitoring your Construction projects and Alpha can double up as your structural inspector as well. Autel Robotics' enhanced safety features combined with the clever fusion of long-range cameras and autonomous flight capabilityes make Alpha ideal for perimeter security and search and rescue operations.

Specifications:

Weight (Battery and Gimbal included): 13.5 pounds

Max. Payload: 6.614 pounds

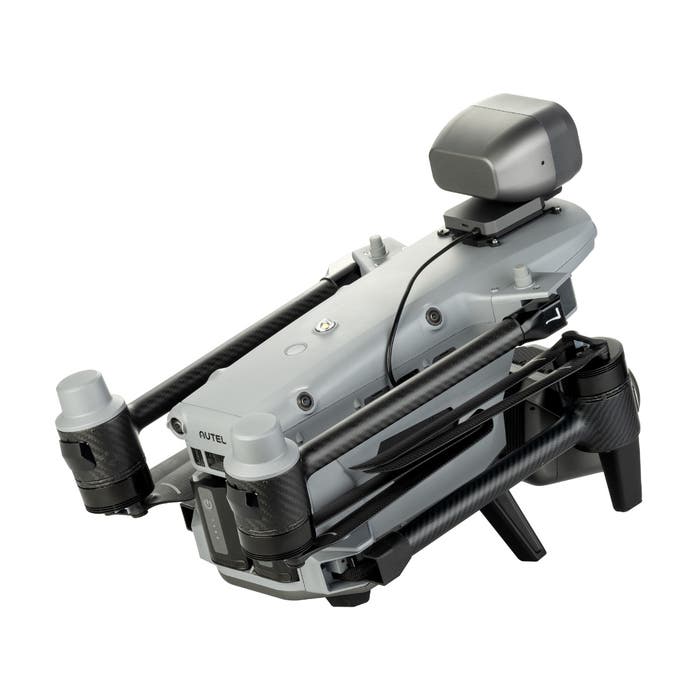

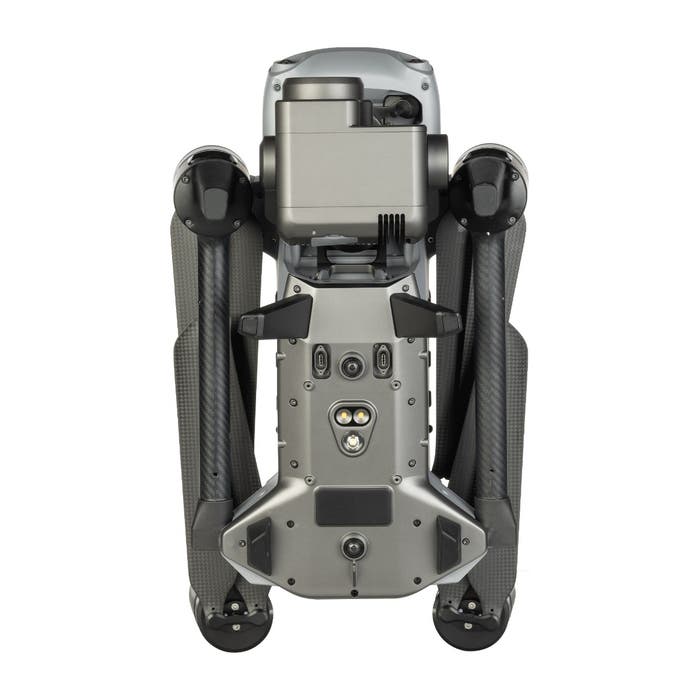

Dimensions: 46.65 x 37.08 x 10.31 in. (Unfolded, incl. Propellers), 31.01 x 21.69 x 10.03 in. (Unfolded, excl. Propellers), 17.83 x 10.31 x 9.64 in. (Folded, excl. Propellers)
Diagonal Wheelbase: 31.88 in.

Max Flight Time (windless): 40mins

Max Hovering Time (windless): 38mins

Max Horizontal Speed (windless near sea level): 24m/s

Max Wind Resistance: 15m/s

Hovering Accuracy: Vertically: ±0.1 m (when vision systems working normally);
±0.3 m (when GNSS working normally); Horizontally: ±0.15 m (when vision systems working normally); ±0.3 m (when GNSS working normally)

IP Rating: IP55

Operating Temperature: -20℃ to +50℃

GNSS: GPS+GLONASS+BeiDou+Galileo

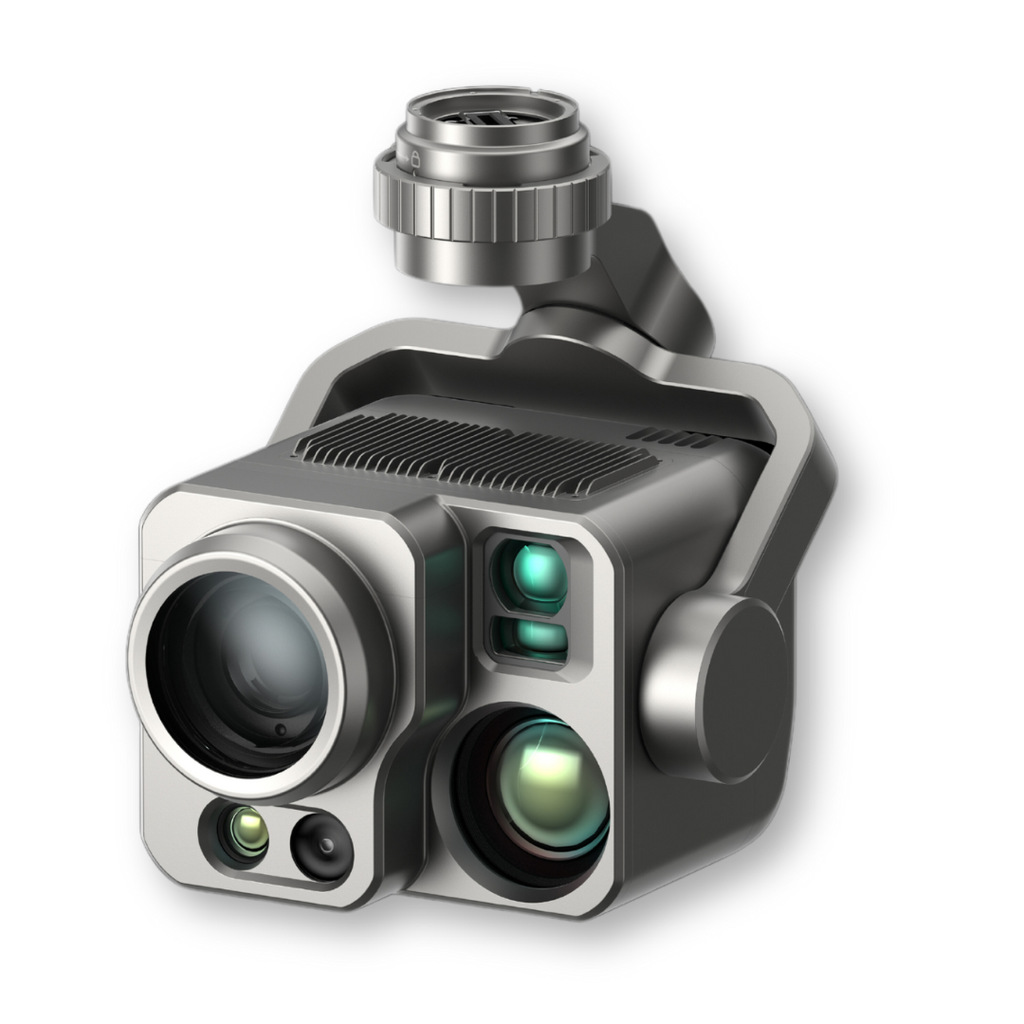

DG-L35T

Autel Alpha Wide Camera

Sensor: 1/2 CMOS

Effective pixels: 48M

Lens DFOV: 84°

Equivalent Focal Length: 24 mm

Aperture: f/2.8

Focusing Distance: 1m ~ ∞

ISO Range: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO256000)

Autel Alpha Zoom Camera

Sensor: 1/1.8" CMOS

Lens FOV: 66.7-34.6°

Focal Length: 34.7~838mm

Aperture: f/1.61~f/5.19

Zoom Range: Optical Zoom: 1~35 times Digital Zoom: 35~560 times

ISO Range: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO320000)

Photo Format: 8bit JPG, 12bit DNG

Resolution: 3840 x 2160

Video Format: MP4/MOV

Max Resolution: 3840 x 2160 P30

Autel Alpha Thermal Camera (Wide)

Sensor: Uncooled VOx Microbolometer

Lens FOV: 42°

Focal length: 13mm

Aperture: f/1.2

Resolution : 640 x 512 P25

Temperature Measurement Range: -20℃ to +150℃，0℃ to +550℃

Temperature Measurement Accuracy: 3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃)

Autel Alpha Thermal Camera (Tele)

Sensor: Uncooled VOx Microbolometer

Lens FOV: 12.3°

Focal length: 45mm

Aperture: f/1.2

Zoom Range: Wide Digital Zoom: 1~3.5 times Tele Digital Zoom: 3.5~56 times

Resolution : 640 x 512 P25

Temperature Measurement Range: -20℃ to +150℃，0℃ to +550℃

Temperature Measurement Accuracy: 3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃)

Autel Alpha Laser Rangefinder

Measuring Range: 10-2000m

Measurement Accuracy: ± (1m + D×0.15%) *D is the distance to a vertical surface

What's in the Box:

1 x Autel Alpha

1 x L35T Gimbal

1 x Instruction Manual
